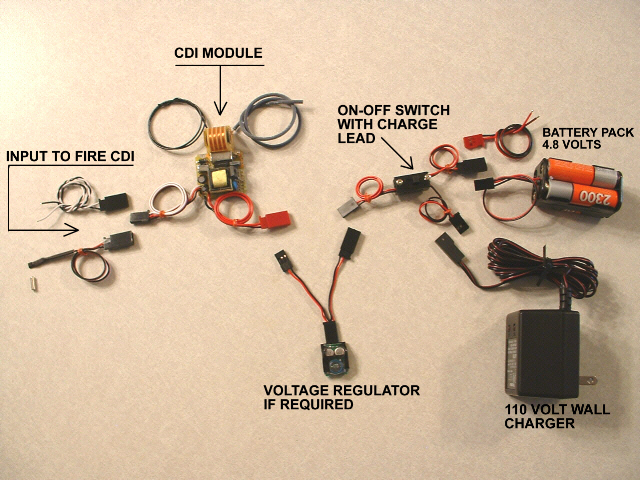

SET UP DIAGRAM
FOR
SINGLE SPARK AND BUZZ TYPE
CDI MODULES

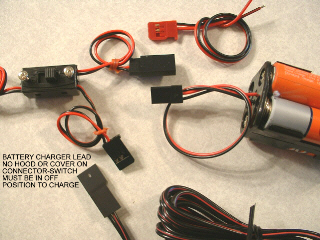

OPERATING VOLTAGE
3.6 VOLTS DC TO 5.5 VOLTS DC

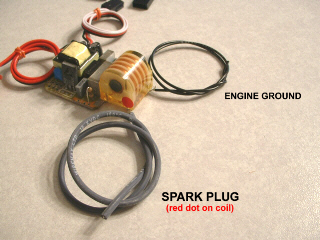

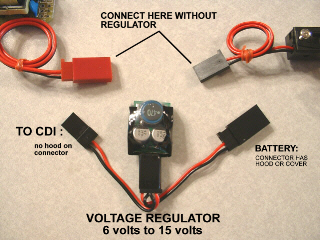

WITH SWITCHING REGULATOR
6 VOLTS DC TO 15 VOLTS DC
3 WIRE CONNECTOR PIN OUT
BLACK = BATTERY GROUND
RED = BATTERY POSTITIVE

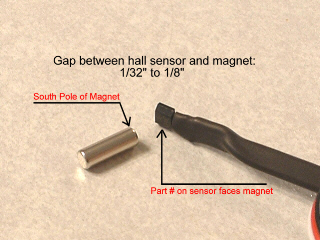

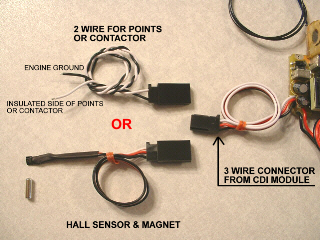

WHITE = SIGNAL
